Exploring Manufacturing Methods for Cylinder Pins and Specialized Processes for Specific Applications

Introduction:

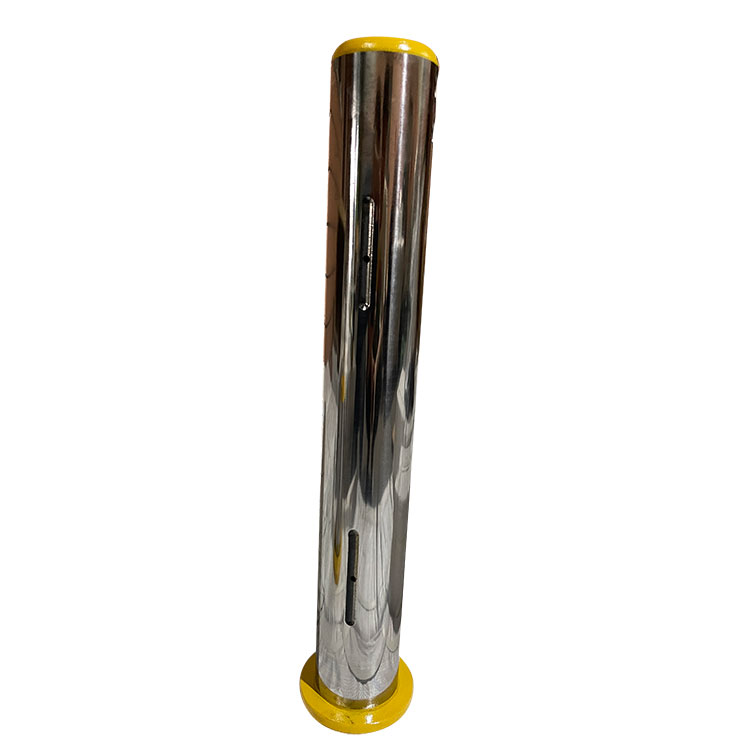

Cylinder pins are indispensable components in various mechanical systems, providing alignment, support, and actuation. Manufacturing cylinder pins requires careful consideration of materials, processes, and specifications to ensure quality, precision, and performance. In this blog post, we'll delve into the common manufacturing methods used for cylinder pins and highlight any specialized steps required for specific applications.

1. Machining:

Machining is one of the most common manufacturing methods for producing cylinder pins. It involves shaping raw material into the desired form using various machining techniques such as turning, milling, drilling, and grinding. Machining allows for precise control over dimensions, tolerances, and surface finish. Materials such as stainless steel, carbon steel, brass, aluminum, and alloys can be machined to produce cylinder pins with tight tolerances and excellent surface quality.

2. Cold Heading:

Cold heading is a manufacturing process used to produce cylindrical parts, including cylinder pins, from wire or rod stock. In cold heading, the material is forced into a die cavity at room temperature, where it is shaped and formed under high pressure. This process is particularly suitable for high-volume production of simple cylindrical shapes with consistent dimensions and mechanical properties. Cold heading can yield cost-effective cylinder pins with minimal material waste and excellent surface finish.

3. Injection Molding:

Injection molding is a manufacturing method commonly used for producing plastic cylinder pins. In this process, molten plastic is injected into a mold cavity, where it solidifies and takes the shape of the mold. Injection molding allows for the production of complex geometries, intricate details, and customized features. Plastic cylinder pins offer advantages such as corrosion resistance, lightweight, and cost-effectiveness for certain applications.

4. Powder Metallurgy:

Powder metallurgy is a manufacturing process that involves forming metal powders into desired shapes using pressure and heat. Cylinder pins produced through powder metallurgy are typically made from ferrous or non-ferrous metal powders, such as steel, bronze, or aluminum. The powder is compacted into a die cavity under high pressure, then sintered in a furnace to bond the particles together. Powder metallurgy enables the production of cylinder pins with complex shapes, controlled porosity, and excellent mechanical properties.

Specialized Manufacturing Steps for Specific Applications:

Depending on the application requirements, certain specialized manufacturing steps may be necessary to enhance the performance, durability, or functionality of cylinder pins:

1. Heat Treatment: Heat treatment processes such as annealing, quenching, and tempering may be employed to optimize the mechanical properties of cylinder pins, such as hardness, strength, and toughness. Heat treatment can improve the pin's wear resistance, fatigue resistance, and dimensional stability under varying operating conditions.

2. Surface Treatment: Surface treatments such as plating, coating, or surface modification may be applied to cylinder pins to enhance their corrosion resistance, lubricity, or aesthetics. Common surface treatments include electroplating (e.g., zinc plating, nickel plating), chemical conversion coating (e.g., anodizing, phosphating), and physical vapor deposition (e.g., TiN coating).

3. Precision Grinding: For applications requiring tight tolerances or fine surface finishes, precision grinding may be used to achieve the desired dimensional accuracy and surface quality of cylinder pins. Grinding operations can remove material with high precision and control, resulting in cylindrical pins with smooth, uniform surfaces and precise dimensions.

Conclusion:

Manufacturing cylinder pins involves a variety of methods tailored to meet specific application requirements. Whether produced through machining, cold heading, injection molding, or powder metallurgy, cylinder pins must adhere to stringent quality standards to ensure reliability, precision, and performance. By incorporating specialized manufacturing steps such as heat treatment, surface treatment, and precision grinding, manufacturers can customize cylinder pins to meet the unique needs of diverse applications, from automotive and aerospace to industrial machinery and consumer electronics.
